Modern House Design Series: MHD-2014014

Php1,740,000

(Floor Plan Code # MHD-2014014)

Plan Details

  • Floor Plan Code: MHD-2014014
  • Modern House Designs
  • Beds: 3
  • Baths: 2
  • Floor Area: 145 sq.m.
  • Lot Area: 152 sq.m.
  • Garage: 1
Share This:

Modern house design MHD-2014014 is a 3 bedroom two story modern house design which is very straight forward and no space is wasted.  The ground floor is 89 sq.m. which comprises all features of a complete house. Maximizing the available space, the right side wall of the garage and bedroom is fire-walled making it a single attached type two story house and still maintaining a wide space in the second floor as the roof above garage can be a balcony or recreation area.

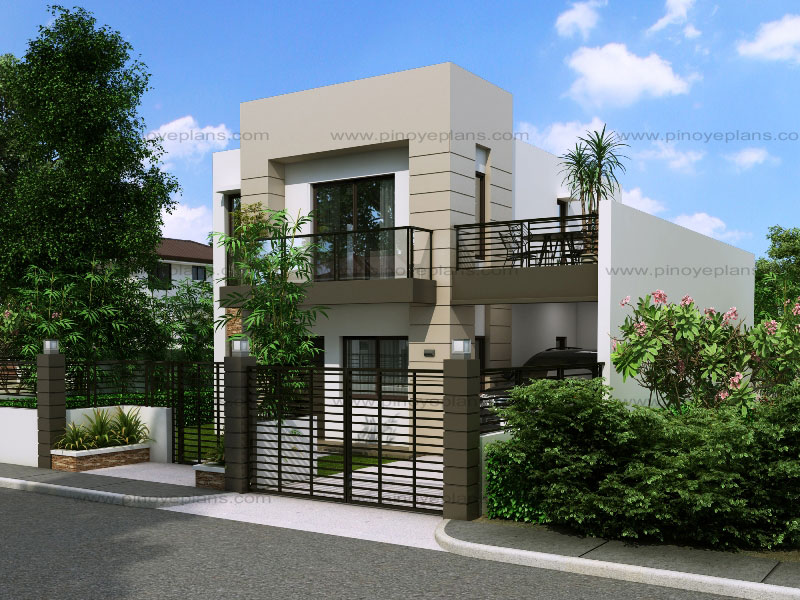

The second floor consists of the common bathroom and 2 bedrooms, where the front bedroom opens to the glass balustrade balcony and to the recreation area. With some touch of stone veneers, black painted railings, sliding windows and doors are the main features of modern house design 20140014.

The total floor area of this house design is  178.0  sq.m.  which can be best fitted to a lot having an area of 152 sq.m. and also having a minimum lot frontage of 11.7 meters.



ESTIMATED COST RANGE

Budget in different Finishes.  Values shown here are rough estimate for each finishes and for budgetary purposes only. Budget already includes Labor and Materials and also within the range quoted by most builders. Budget Currency is in Philippine Peso (PHP).

Rough Finished Budget1,740,0002,030,000
Semi Finished Budget2,320,0002,610,000
Conservatively Finished Budget2,900,0003,190,000
Elegantly Finished Budget3,480,0004,060,000

FLOOR PLAN

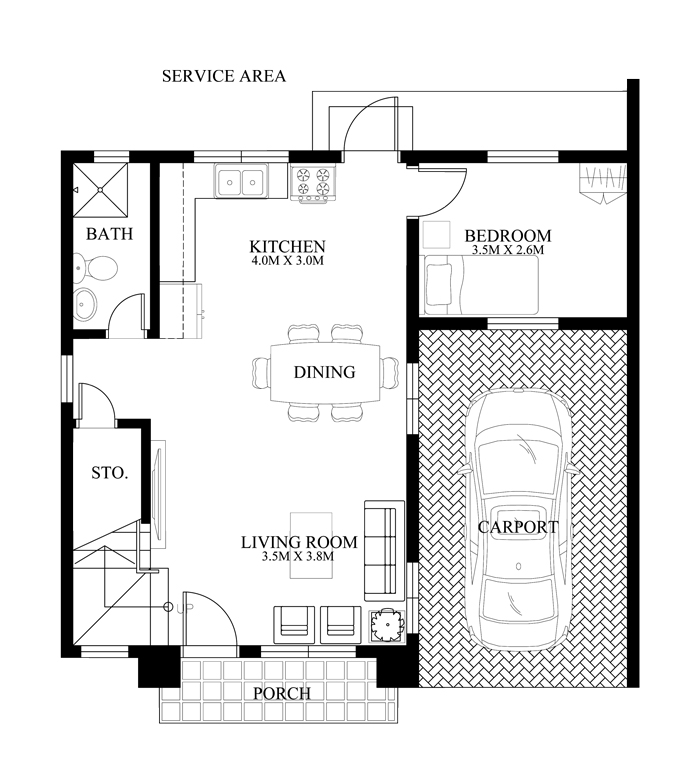

MHD-2014014-ground-floor

GROUND FLOOR PLAN

MHD-2014014-second-floor

SECOND FLOOR PLAN

MHD-2014014-FRONT-VIEW-WM

Building a house of this type provides several advantages since the roof does not require any maintenance during its early years. But it is critical to to give more attention during construction of the roof specially in the waterproofing works since concrete is not impermeable to rain or water. Special water proofing treatments should be used to insure that no leakages will occur during rainy days and no water accumulates on the roof thereby insuring an acceptable slope during construction.
