Prosperito – Single Attached Two Story House Design with Roof Deck (MHD-2016023)

Plan Details

  • Floor Plan Code: MHD-2016023
  • Modern House Designs
  • Beds: 4
  • Baths: 3
  • Floor Area: 266 sq.m.
  • Lot Area: 150 sq.m.
  • Garage: 1
Share this Design:

Prosperito is a single attached two story house design with roof deck. This floor plan is the modified version of MHD-2015020 and MHD-2014010.  This is designed for narrow lot with 10 m frontage width making one side firewall ensuring at least 2 meter setback on the opposite side.

Front gate is located on the boundary maximizing the space by covering the entrance of the garage with the terrace above. Entry porch, living room and dining are in one line ensuring continuous flow all the way to the kitchen.  The maids room is directly adjacent to the kitchen which serves its purpose very much. it can also be converted to an ordinary room to be occupied by visitors just in case. The ground floor plan is also provided with a toilet and bath, storage, lanai and a service area.

The second floor consists of the Master’s Bedroom measuring 3.9 by 3.4 meters overlooking the terrace at the front having its built-in toilet and bath and built-in cabinets. The door to the terrace  is along the hallway to provide access by the 2 bedrooms. Bedroom 2 and 3 is located at the rear having an area of 11.2 and 9.36 sq.m. respectively. Roof deck is 73 sq.m. which big enough to accommodate small gatherings and a place to relax during the very busy day.

FLOOR PLANS

house plan with roof deck and firewall



 GROUND FLOOR PLAN



second floor plan of 2 storey house with roof deck



SECOND FLOOR PLAN

ESTIMATED COST RANGE

Budget in different Finishes.  Values shown here are rough estimate for each finishes and for budgetary purposes only. Budget already includes Labor and Materials and also within the range quoted by most builders. Budget Currency is in Philippine Peso (Php).

Rough Finished Budget 3,192,000 3,724,000
Semi Finished Budget 4,256,000 4,788,000
Conservatively Finished Budget 5,320,000 5,852,000
Elegantly Finished Budget 6,384,000 7,448,000

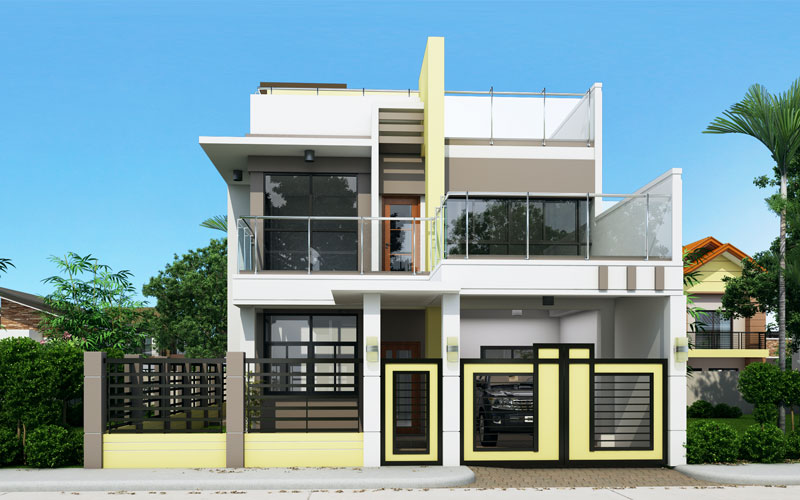

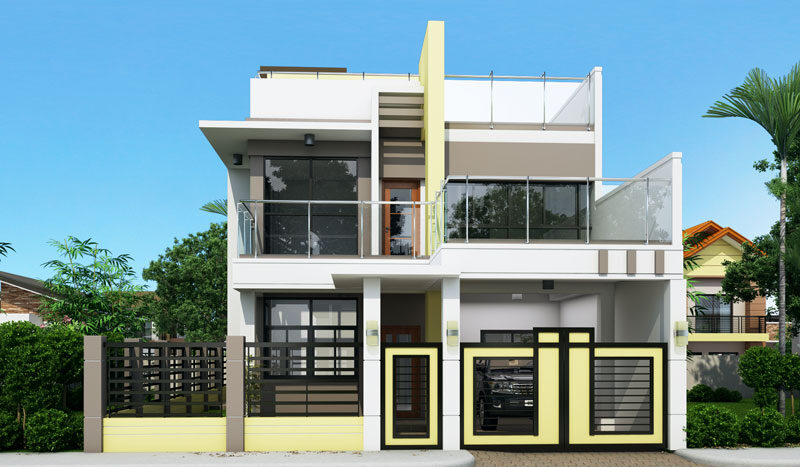

MHD-2016023_View02

Two story house design with firewall like Prosperito Model is the way to go if you have limited space and specially the frontage width. Pinoy eplans never stopped providing designs that are specially tailored for clients preferences. Feel free to visit pinoyeplans.com for more floor plans and narrow lot plans.



ORDER NOW!

Buy Blueprint Package  Buy PDF Package  Buy All Original Package
