Small House Design: SHD-2015014

Php1,608,000

(Floor Plan Code # SHD-2015014)

Plan Details

  • Floor Plan Code: SHD-2015014
  • Beds: 4
  • Baths: 2
  • Floor Area: 134 sq.m.
  • Lot Area: 269 sq.m.
  • Garage: 1
Share This:

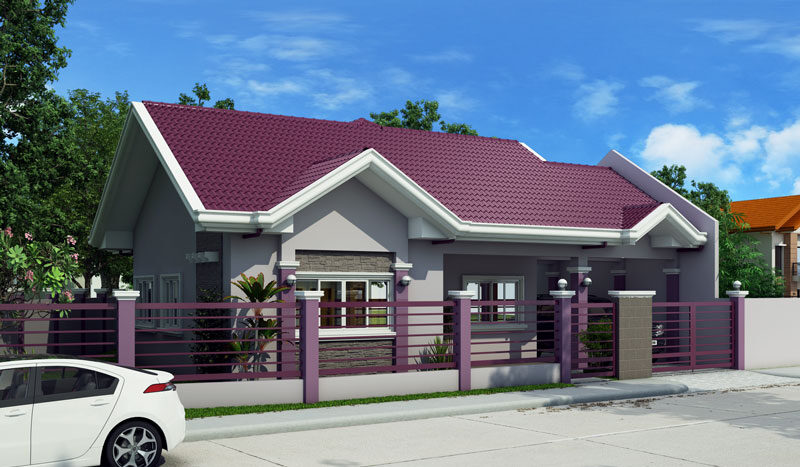

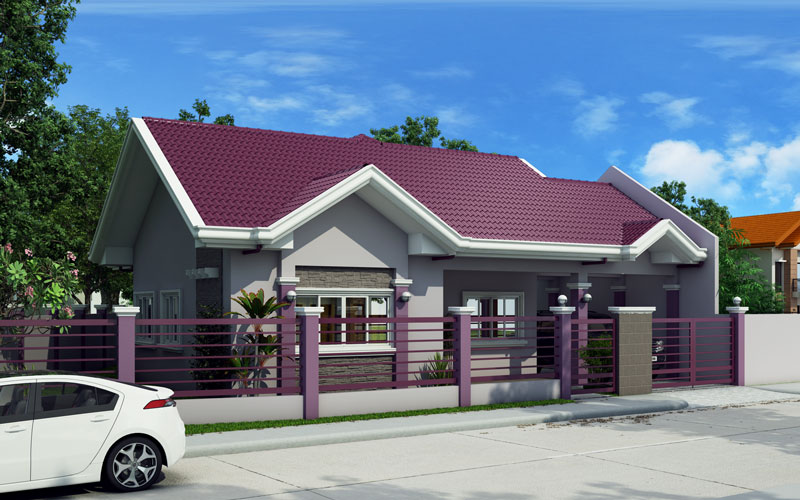

Small house design 2015014 is a contemporary design with 4 bedrooms including the maid’s room. This house can be built in a 269 sq.m. lot having at least 15 meters width or frontage. With this lot area, the setback on the right and rear side is 2m from the lot boundary and fire-walled at the garage side. From the gate the house has a setback of 3 meters. Opening to the right of the Patio is an open ended living room where in the dining and kitchen can be readily accessed.

This house plan is provided with 2 bathrooms which can served all the occupants. The bathroom near the Master’s bedroom can also be customized to serve only the master’s bedroom for privacy and convenience of the Land lord.

With this house design, it may not be a typical house for Filipinos in general since it requires a bigger lot. Still, this would be a good choice for families dreaming to have their own house in the future.



ESTIMATED COST RANGE

Budget in different Finishes.  Values shown here are rough estimate for each finishes and for budgetary purposes only. Budget already includes Labor and Materials and also within the range quoted by most builders. Budget Currency is in Philippine Peso (PHP).

Rough Finished Budget1,608,0001,876,000
Semi Finished Budget2,144,0002,412,000
Conservatively Finished Budget2,680,0002,948,000
Elegantly Finished Budget3,216,0003,752,000

FLOOR PLAN



small-house-design-2015014-floor-plan

MATERIAL FINISHES

The floor is 300 x 300mm ceramic glazed tiles which includes the Living area, Dining, Kitchen, Bedrooms, and Bathrooms (unglazed). The floor in the patio is 300 x 300mm Terracotta Tiles and garage uses cement paver tiles.

Ceiling is 1/4″ thick marine plywood painted finish with cornice.

Walls are painted cement plastered finish in the interior. The exterior is also painted cement plaster finish with stone veneer or brick accents.

The windows are White powder coated aluminum sliding window with 1/4″ thick clear annealed glass. Windows can also be grilled from the outside or inside for safety Purposes.

The roof consist of steel trusses, steel purlins and pre-painted long span roofing having a concrete roof tile effect. Roof gutters are also pre-painted spanish style gutters and flashings.

small-house-design-2015014-View02WM

This may not be a very elegant finish but this are the finishes specified in all my designs. They can be altered by the owner with their preferred finishes, more elegant means more to your budget.
