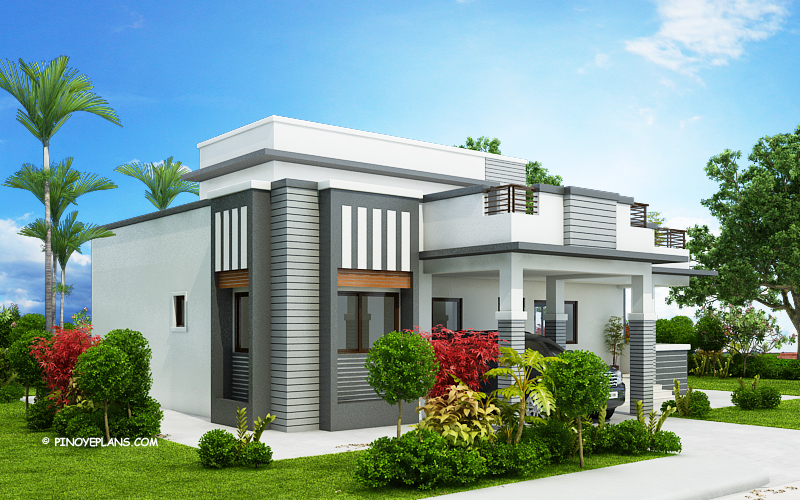

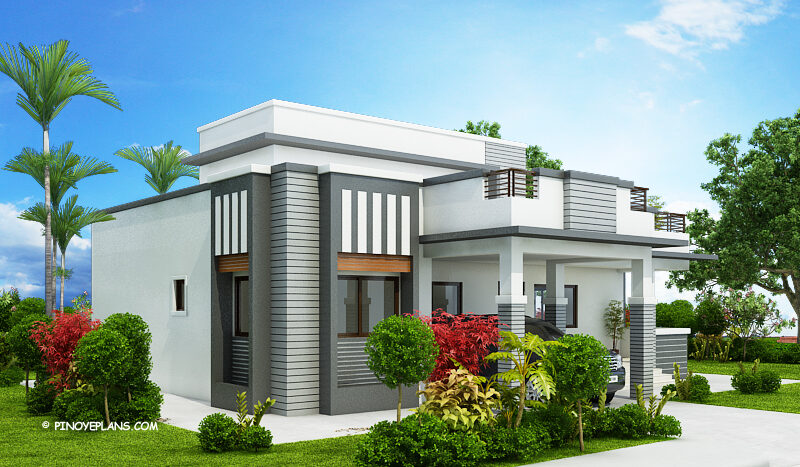

Four Bedroom Modern House Design with Wide Roof Deck

Plans Ready

Description

This four bedroom modern house design with roof deck has a total floor area of 177 square meters not including the roof deck. This design can fit in a lot with a total lot area of 300 square meters having at least 16.8 meters lot frontage.

Most of the color scheme used in this house are clean and neutral colors. For the window surroundings dark grey color has been used. Light grey color are either used in columns or on corners of building walls. White being the most dominant color here thereby making it more clean in aesthetic look.

Another feature of this four bedroom modern house design is its elevated floor 500 mm from the natural grade line. Elevating the floor would help in avoiding flood water coming from the surroundings whenever heavy rains will come, specially if you are located in low lying area.

Windows are mostly powder coated aluminum sliding windows and some are awning windows.These types of windows are available at htrwindows.ca.. Doors are wood panel doors. Ceiling is at most 2.8 meters from the finish floor line on the ground floor and 2.85 meters for the ceiling at the second floor.

Now let us going to discuss the layout in details. Garage is in front and at the center which is 4 m by 4.5 m in size which can also serve as another porch when the car is not parked in this area. Going up with 4 steps is the porch which is 5.3 m by 2 m in dimension which will lead to the main entrance going to the living room.

Living room and dining are semi-open type which is a good feature for this house since it will look more spacious due to no obstruction of site if you stand from the living room. Living area is 5.3m by 4 m in size and dining room is 4 m by 4 m, with combine area of 37 square meters.

Located at the back are the two bedrooms, one master’s bedroom and one standard room. Master’s bedroom is equipped with walk-in closet and en-suit toilet and bath while bedroom 2 will share a common bathroom at the left side where bedroom 1 is located.

At the left side of the floor plan is bedroom 1 and kitchen. In between these two rooms is the common toilet and bath with a small closet in-front. Kitchen is 3.5 m by 3.3 m with U-shaped granite counter top and hanging cabinets. At the back will open a door leading to the Laundry or dirty kitchen.

ESTIMATED COST RANGE

Budget in different Finishes.  Values shown here are rough estimate for each finishes and for budgetary purposes only. Budget already includes Labor and Materials and also within the range quoted by most builders. Budget Currency is in Philippine Peso (Php).

  • Rough Finished Budget: 2,124,000 – 2,478,000
  • Semi Finished Budget: 2,832,000 – 3,186,000
  • Conservatively Finished Budget: 3,540,000 – 3,984,000
  • Elegantly Finished Budget: 4,248,000 – 4,956,000
Property Id : 21959
Property Size: 177 m2
Property Lot Size: 300 m2
Bedrooms: 4
Bathrooms: 3
Floor Plan Code: MHD-2017032
Garage Size: 1 car
GROUND FLOOR PLAN
size: 177 m2
rooms: 4
baths: 3
GROUND FLOOR PLAN
ROOF DECK PLAN
ROOF DECK PLAN
