(Floor Plan Code # MHD-2017028)
- Floor Plan Code: MHD-2017028
- Two Storey House Plans
- Beds: 4
- Baths: 3
- Floor Area: 213 sq.m.
- Lot Area: 208 sq.m.
- Garage: 2
Marcelino model is a Classic 4-bedroom house plan that can be built in a 213 sq.m. lot with 13 meter width as minimum. Starting from the ground floor, this house design is provided with a garage that can accommodate 2 cars. A small porch serve as gateway to the 6 meter by 4 meter living room. On the U-shaped stairs, beneath is a comfort room which serve as common bathroom for the entire ground floor.
Moving forward is an area for dining, kitchen and mini-bar. A 6 by 4 meters dining is ideal for a medium size family. Kitchen is 3 meters by 4 meters enhanced by adding a mini-bar to separate the kitchen from the dining area. The dining area is provided with a lanai at the back for relaxation after each meal. It has an option to be open and also can be covered with trellis at poly-carbonate roofing. Kitchen is also provided with a service area or dirty kitchen whenever the main kitchen is already busy. The kitchen is also accessible from the garage a convenient way to transfer goods after going to market. A small patio is also provided in the living area to augment space. A small bedroom in the ground floor can serve as a guest room or it can be converted to maid’s room.
Going up to the second floor is a small family room a medium size furnishing. Making this area more ventilated with light, an accordion facade with door is installed separating the area from the balcony. Two standard rooms at the rear with built-in cabinets, shares a common bathroom. The master’s bedroom is situated at the front with an en-suite bathroom and walk-in closet.
GROUND FLOOR PLAN
SECOND FLOOR PLAN
Estimated Cost Range
Budget in different Finishes. Values shown here are rough estimate for each finishes and for budgetary purposes only. Budget already includes Labor and Materials and also within the range quoted by most builders. Budget Currency is in Philippine Peso (Php).
|Rough Finished Budget||2,496,000||–||2,912,000|
|Semi Finished Budget||3,328,000||–||3,744,000|
|Conservatively Finished Budget||4,160,000||–||4,576,000|
|Elegantly Finished Budget||4,992,000||–||5,824,000|

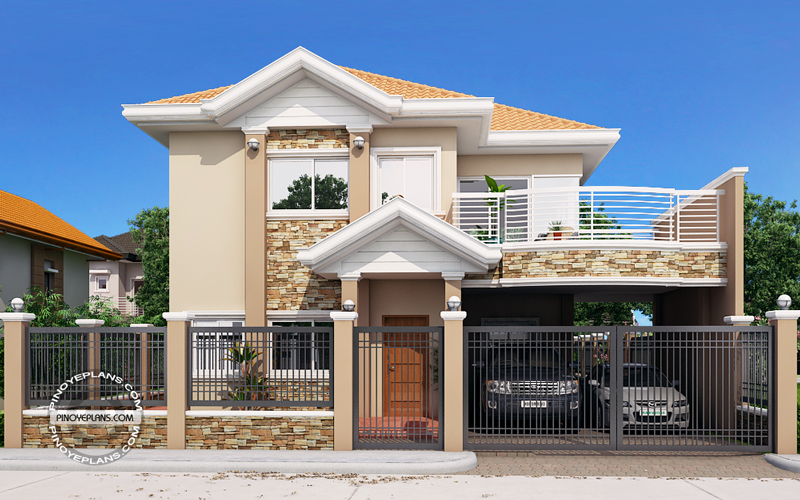

Overall, this classic 4-bedroom model has a total floor area of 213 sq.m. which is ideal for a medium size family with considerable budget. This eplan is also a modified version of a two storey house model MHD-2012005 only that this model has a 2-car garage. Aluminum framed windows and doors, long span roofing tile effect, stone veneer are the main features of Marcelino model. Pinoy eplans, never stop providing Filipino style houses both affordable and also luxury house plans.
