Modern Home Design, MHD-2012002

Plan Details

  • Floor Plan Code: MHD-2012002
  • Beds: 4
  • Baths: 3
  • Floor Area: 331 sq.m.
  • Lot Area: 254 sq.m.
  • Garage: 2
Share this Design:

PLAN DESCRIPTION

MHD-2012002 is a breathtaking modern house design of glass, concrete and steel. This four bedroom, four toilet and bath, modern house design had an interesting open lay-out of living and dining area which open to individual lanai.

MHD-2012002 is ideal for entertaining and an interesting design with its corner glass architectural feature concrete eaves, horizontal steel balustrade and more.

On the ground floor includes a maids room and a guest room. The garage can accommodate 2 cars and optionally you can build a swimming pool viewable on the living room on the ground floor and from the family area at the upper floor.

The second floor consist of the master’s bedroom with the master’s Bath. Three bedro0ms having an average size of 12-15 sq.m. shares a common bathroom. The stairs leads to family room which can be a good scape for the busy day and relax overviewing the swimming pool below.





FLOOR PLAN

/modern-house-design-2012002-ground-floor

GROUND FLOOR





modern-house-design-2012002-second-floor

SECOND FLOOR



ESTIMATED COST RANGE

Budget in different Finishes.  Values shown here are rough estimate for each finishes and for budgetary purposes only. Budget already includes Labor and Materials and also within the range quoted by most builders. Budget Currency is in Philippine Peso (Php).

Rough Finished Budget 3,972,000 4,634,000
Semi Finished Budget 5,296,000 5,958,000
Conservatively Finished Budget 6,620,000 7,282,000
Elegantly Finished Budget 7,944,000 9,268,000

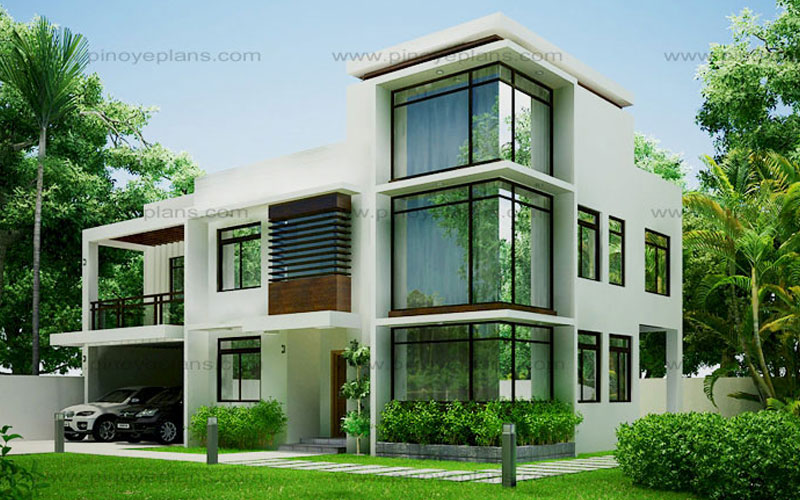

modern-house-design-2012002-perspective-1wm

With lots having a frontage width of 17.5m and at least 14.5m depth, this modern house design can confidently stand still maintaining the minimum setbacks, 3 meters at the front 1.5m on right side, along the boundary on the garage and 2 meters at the rear.
This Pinoy floor plan is especially design for Filipinos with a good budget and a considerably have a good lot space to occupy an optional swimming pool. The lot is still maximize since the wall on the garage lies on the boundary line of the the lot. This will be a good choice for pinoys dreaming to have an elegant and modern dream house.

ORDER NOW!

Buy Blueprint Package  Buy PDF Package  Buy All Original Package



INQUIRE NOW!
